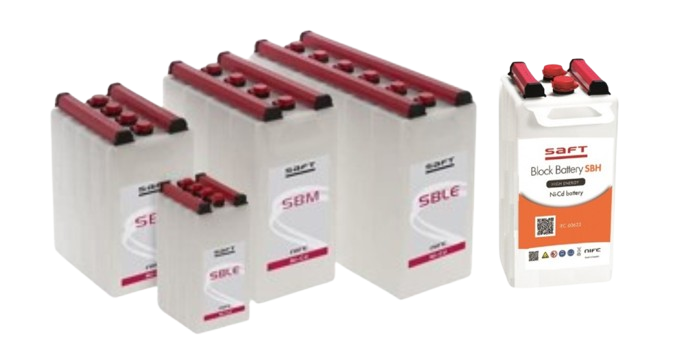

Block Battery:
– SBLE ENERGY nickel battery range (L type)
– SBM MEDIUM POWER nickel battery range (M type)
– SBH HIGH POWER nickel battery range (H type)
Saft has designed the SBLE, SBM, and SBH series of block batteries to provide an optimal and flexible solution for all stationary applications. With options for low, medium, and high-performance discharge rates, selecting the right battery is simple, depending on the required discharge duration and end-of-discharge voltage, and need only basic maintenance.

The batteries are designed in block form with a maximum of 6 cells (filled and charged), offering a lifespan of 12 years at 40°C, or 20 years at 20°C .
• No topping up needed when charged according to specification.
• Maintenance-free
*Maintenance-free means that no addition of water is necessary during the life time of the product when operating under Saft’s recommended conditions.

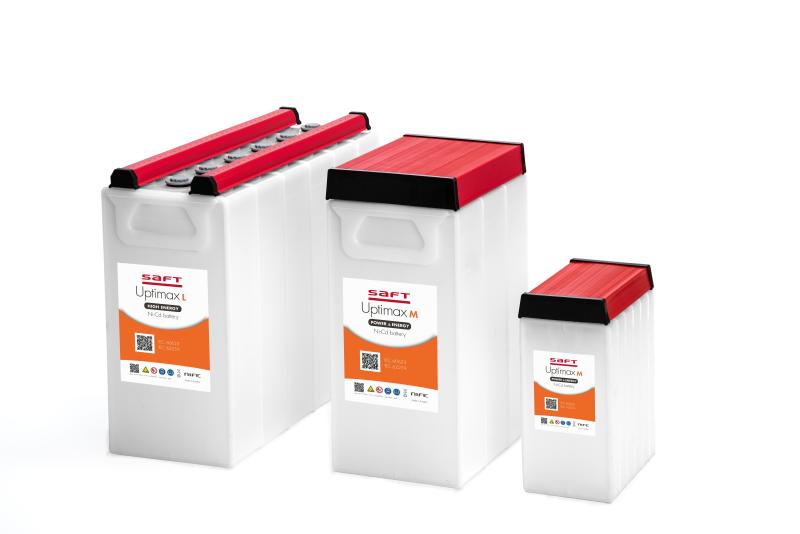

Batteries designed for solar cell applications, capable of operating across a wide temperature range and suitable for use in remote areas.
• Capacity range : 50 Ah to 1830 Ah (C120 A rate)
• Operates in extreme temperatures from – 20°C to + 50°C and
tolerates – 50°C to + 70°C for short durations
– Long life-cycle : over 20 years
• Cycling : achieves 10,000 cycles at 15% of daily depth of
discharge
– Low-maintenance

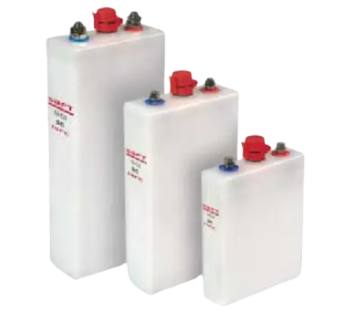

Nickel-cadmium (NiCd) single cells are designed for general purpose applications, where maximum operating reliability is a key factor:
• switch tripping
• emergency lighting
• alarms
• DC instrumentation
SCL P cells are optimized for extended discharge durations, typically lasting 2 hours or more. Meanwhile, SCM cells are designed for medium discharge durations, ranging from 30 minutes to 3 hours.
